Ready to Ship - Slab MX

FULLY ASSEMBLED READY TO SHIP

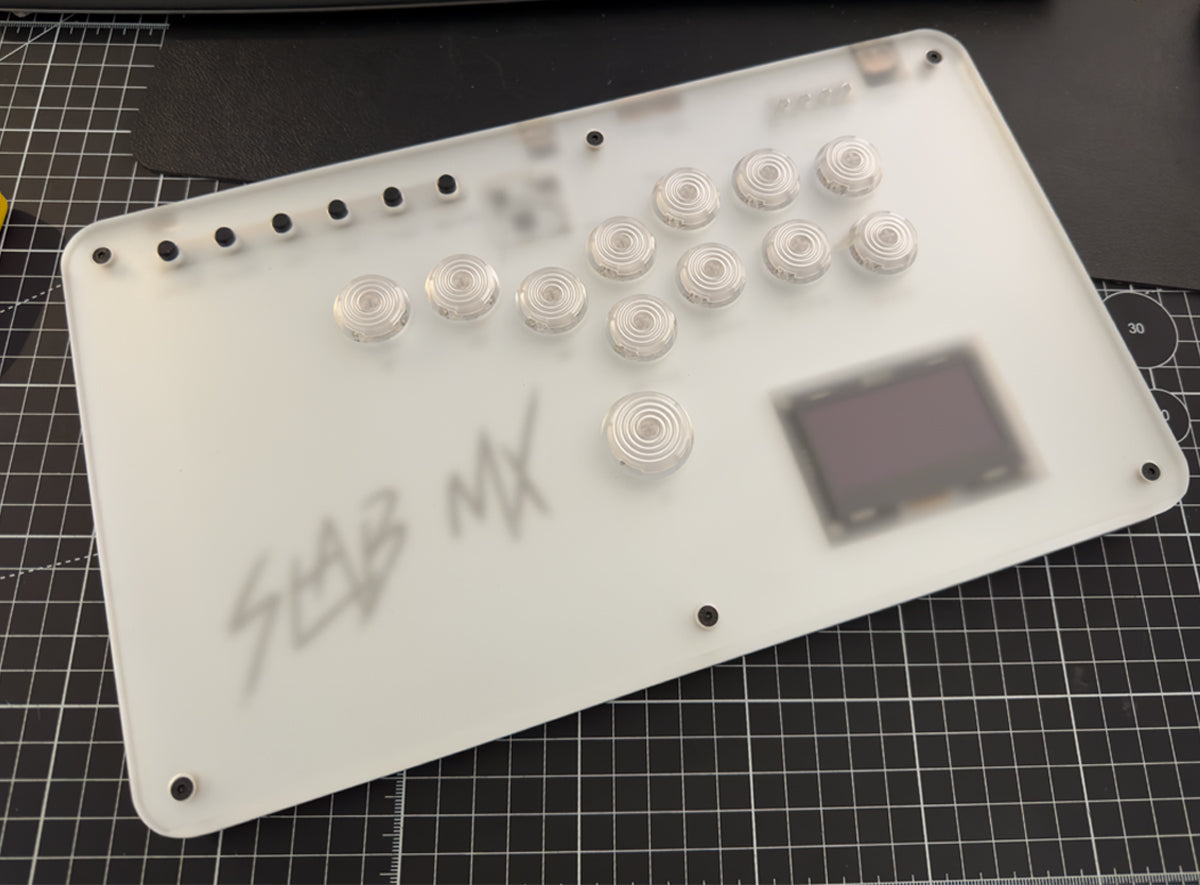

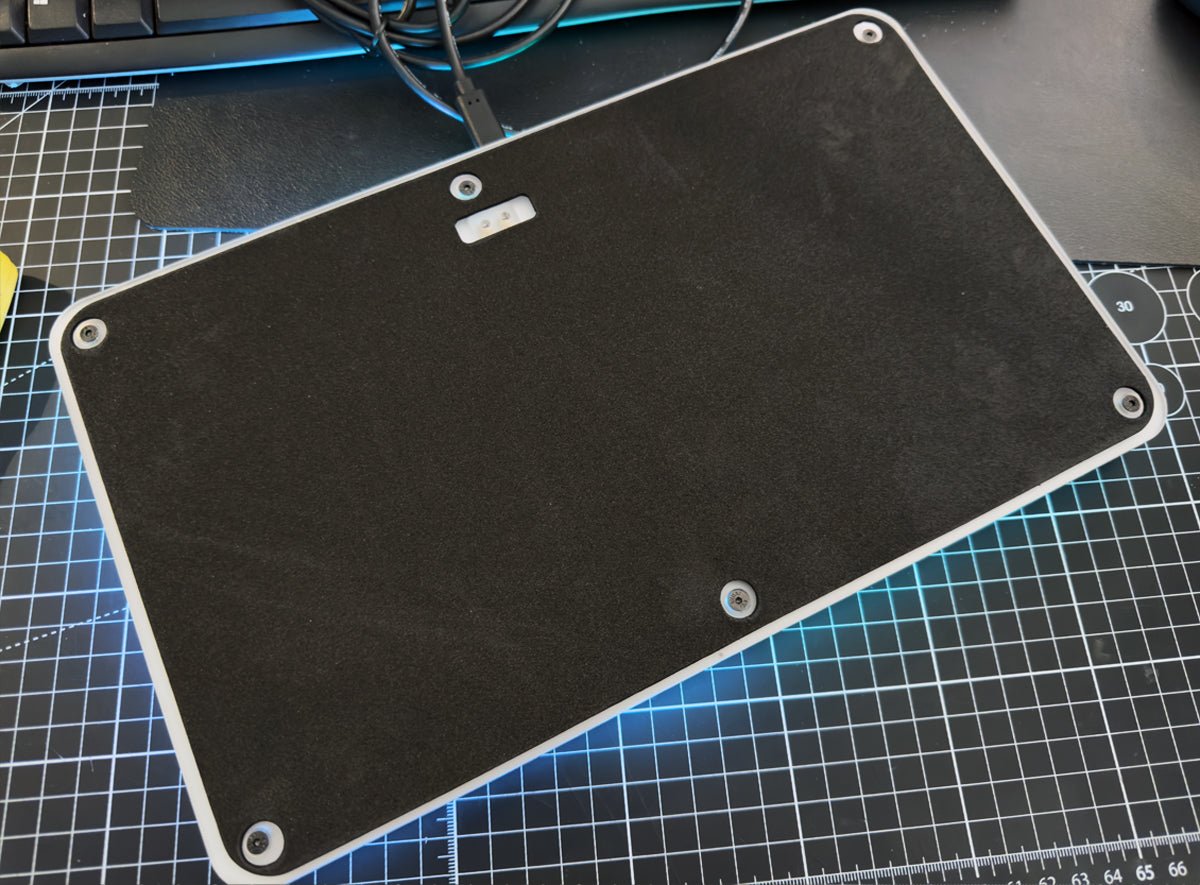

Matte clear (frost) Case - with 2mm foam on the back. 6ft USB C wire included.

NO PS5 boot usb included.

https://www.etsy.com/shop/ArcadePCBs

*USB C cable and switch puller are not included*

PLEASE READ (Gp2040-ce.info) for documentation on the firmware.

Designed and Hand Made is the USA

NOW WITH USB PASSTHROUGH! You can now plug in a Mayflash Magicboots v1.1, Mayflash Ultimate s, Or Wingman FGC Directly to the controller to authenticate as a legacy fightstick to play PS5 Fighting games!! Will have 8min Timeout without these converters.

PS3/PS4/PS5*/Xbox360/OG Xbox/XBOX ONE Series S,X**/PC/Switch/Android/Sega Genesis-Megadrive mini/NEOGEO mini/PC Engine-Turbografix 16 mini/EGRET mini II/ASTROCITY mini/Playstation Classic Support!
*PS5 requires a Mayflash magicboots PS4 v1.1 in usb passthrough mode
**XBOX One requires a Mayflash magicboots XONE in usb passthrough mode

Check Gp2040-ce.info for Documentation and LED Shortcuts!!

**All Controllers will have new Switch Plate Design so no more popping out of switches. Including orders that have not been fulfilled. **

Features-
Embedded Pico Running GP2040-CE Firmware - PCB Designed By Arcadepcbs on etsy and manufactured by JLCPCB
USB C - Cable not included
USB Passthrough For PS5 Fighting Game Support. Must Enable in Webconfig. D+ pin is 23
LTC Crystal Similar Reds MX Switches
Hotswap Sockets
Clear Mx Arcade Caps By SinoArcade

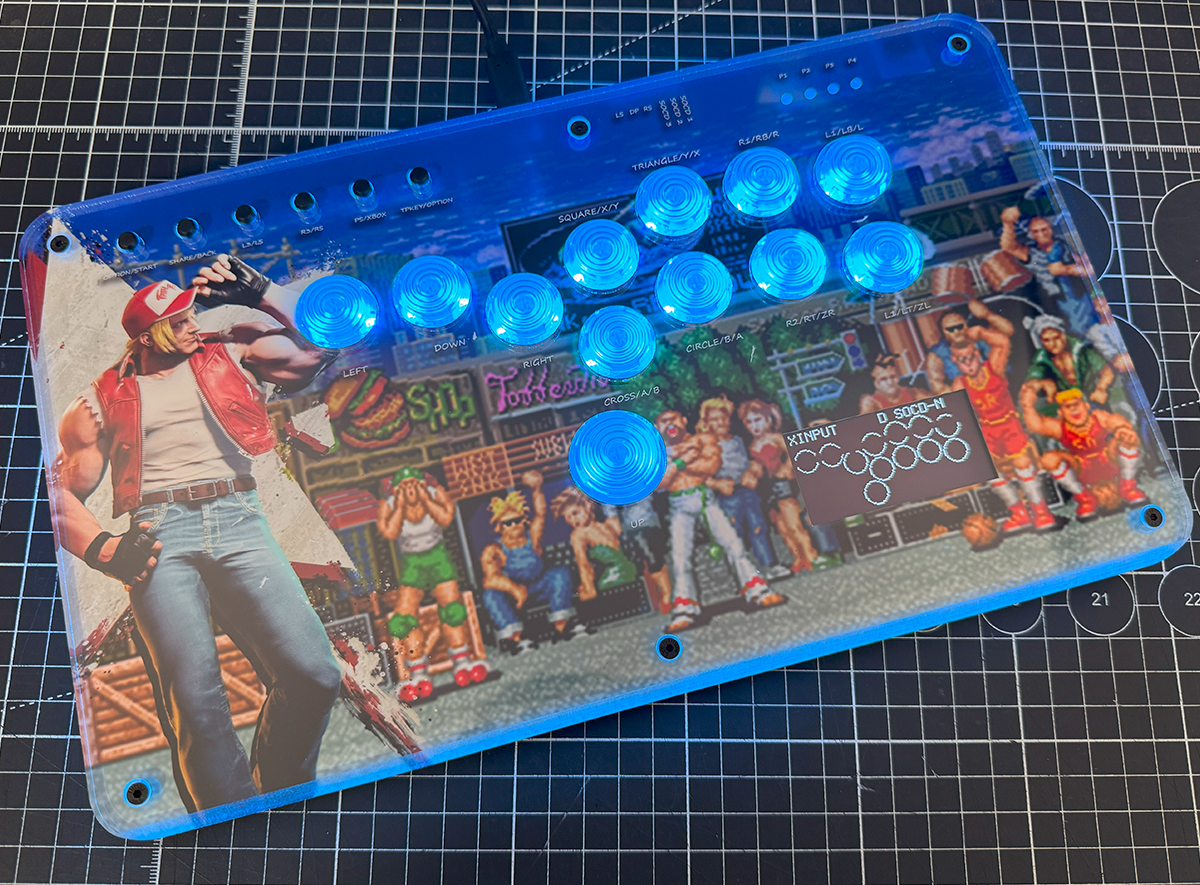

Dual Per Key RGB Buttons - All MX profile switches now compatible With RGB regardless if they have Clear Housing or RGB slot
RGB Player LED *X-input Only*
2.42" White OLED
SOCD 3 Way Slider
Directional DP/LS/RS Slider
Tournament Lockout for Option Buttons
Microswitch Option Buttons With Caps
Reset and Bootsel Buttons On Bottom
Sandwich Acrylic Case
Countersunk Top and Bottom Screws
PLED LED Light Pipes
Clear Rubber Bumpers
LxWxH 320x190x20.7mm - 12.59x7.48x0.81in

Firmware Update - https://github.com/troytroy22/GP2040-CE-ArcadePCBs/releases
To Enter Bootloader mode - HOLD START+SELECT+UP While plugging in the Board. Or press the BOOTSEL button on the Board while plugging into the computer.
